Media:Â
Air & Water (not drinking water)
Working pressure:
28″ Hg Vacuum to 150 PSI
Working temperature:
23 to 140° F (compressed air) 32 to 104° F (water)
Hardness:
Shore A 95 durometer
Applicable Fittings:
Push to connect, Compression, Barb
|
Model No.
|
0.D
|
I.D
|

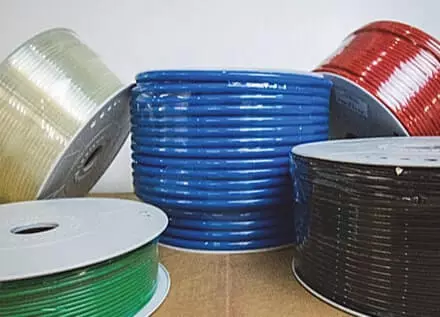

Packing
|
|---|---|---|---|
|
PU 1/8*-200M
|
.125"
|
.079"
|
200M/Roll
|
|
PU 3/16*-200M
|
.1875"
|
.126"
|
200M/Roll
|
|
PU 1/4*-200M
|
.250"
|
.166"
|
200M/Roll
|
|
PU 3/8*-100M
|
.375"
|
0.25"
|
100M/Roll
|
|
PU 1/2*-100M
|
.5"
|
.333"
|
100M/Roll
|
|
Note.
|
||
|---|---|---|
|
5/32" Tubing: Use 4mm
|
5/16" Tubing: Use 8mm
|
5/8" Tubing: Use 16mm
|
|
Model No.
|
0.D
|
I.D
|
Packing
|
|---|---|---|---|
|
PU 3*-200M
|
3mm
|
2mm
|
200M/Roll
|
|
PU 4*-200M
|
4mm
|
2.5mm
|
200M/Roll
|
|
PU 6*-200M
|
6mm
|
4mm
|
200M/Roll
|
|
PU 8*-100M
|
8mm
|
5mm
|
100M/Roll
|
|
PU 10*-100M
|
10mm
|
6.5mm
|
100M/Roll
|
|
PU 12*-100M
|
12mm
|
8mm
|
100M/Roll
|
|
PU 16*-100M
|
16mm
|
12mm
|
100M/Roll
|
|

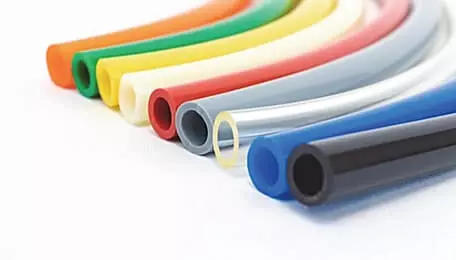

Standard Color Options:
|
||
|---|---|---|
|
Black
|
B
|
|
|
Blue
|
BU
|
|
|
Clear
|
C
|
|
|
Green
|
G
|
|
|
Gray
|
GR
|
|
|
Orange
|
OR
|
|
|
Red
|
R
|
|
|
White
|
W
|
|
|
Yellow
|
Y
|
|
Note: Other colors available upon request
